Power Fittings
Who we are?
Hebei Pubang Fastener Manufacturing Co., Ltd. is a manufacturer of photovoltaic accessories, power industry fasteners, and custom components for infrastructure projects. Its product range includes galvanized cross arms, transformer platform fittings, pole clamps, foundation bolts, steel embed plates, cable support brackets, and threaded connection hardware for utility poles, PV structures, cable routes, and concrete foundations.
With a 3,000-square-meter facility and integrated production, sales, and after-sales teams, Pubang supports the manufacturing of power fittings for standard and project-based applications. The company handles processes such as cutting, drilling, bending, welding, threading, surface treatment, inspection, and product packing according to confirmed specifications.
Power Fittings Overview
Power fittings and utility hardware serve critical fastening, load-bearing, and connecting functions across electrical power infrastructure. Choosing the right fittings requires matching installation dimensions, mechanical load requirements, corrosion resistance, and specific site conditions.
At Hebei Pubang Fastener Manufacturing Co., Ltd., we provide a complete lineup of standard power fittings and related hardware, including pole clamps, utility bands, transformer cross arms, foundation anchor bolts, and cable support brackets. Designed for overhead distribution lines, pole-mounted equipment, substations, and cable vaults, our components deliver long-term mechanical reliability and superior outdoor durability.
Our Power Fittings Product Series
Explore our standard product categories below to find matching hardware for your electrical and infrastructure projects. Click on any category to view full specifications, available dimensions, and application details.
-
![Galvanized U Clamp]()
Galvanized U ClampGalvanized u clamp is made from carbon steel with hot-dip galvanized coating. Common sets use M10 or M12 threaded rods, 4.8 grade or 8.8 grade, and pipe sizes such as 48 mm, 60 mm, 76 mm, 89 mm,...read more -
![SS U Bolt Clamp]()
SS U Bolt ClampSS U bolt clamp is supplied in 304 or 316 stainless steel. Common sizes include M8, M10, and M12 rods, with pipe openings from 1/2 inch and 3/4 inch to 2 inch, 2-1/2 inch, and 48 mm.read more -
![Transformer Cross Arm]()
Transformer Cross ArmTransformer Cross Arm is made from Q235B or Q355B channel steel with a hot-dip galvanized surface. Common platform beams use 10# channel steel 100×48×5.3 mm or 12# channel steel 120×53×5.5 mm,...read more -
![Galvanized Transformer Cross Arm]()
Galvanized Transformer Cross ArmGalvanized Transformer Cross Arm uses Q235B or Q355B channel steel and hot-dip galvanizing. Typical sizes are 10# channel steel 100×48×5.3 mm and 12# channel steel 120×53×5.5 mm, with 2.5 m or...read more -
![Gi Foundation Bolt]()
Gi Foundation BoltGi foundation bolt is made from Q235B, Q355B, 45# steel, 40Cr, or 35CrMoA according to load. Common grades include 4.6, 5.6, 8.8, and 10.9, with diameters from M16 to M48 and lengths from 200 mm...read more -
![Mild Steel Foundation Bolt]()
Mild Steel Foundation BoltMild steel foundation bolt is usually made from Q235B low carbon steel in 4.6 or 5.6 grade. Common diameters include M16, M20, M24, M30, M36, M42, and M48, with 200-2000 mm length by foundation...read more -
![Hot DIP Galvanized Cable Support Bracket]()
Hot DIP Galvanized Cable Support BracketHot DIP Galvanized Cable Support Bracket is made from Q235 steel with a hot-dip galvanized coating. Common arm lengths are 300 mm, 400 mm, 500 mm, and 600 mm, with 2.5-4 mm plate thickness or...read more -

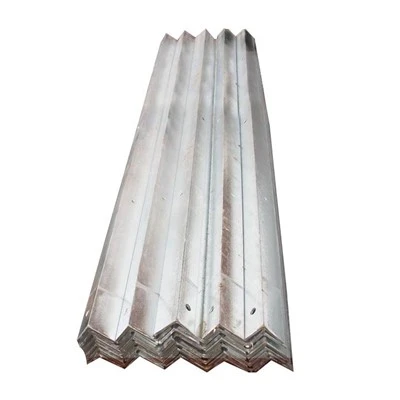

![Cross Arm Electrical Pole]()
Cross Arm Electrical PoleCross arm electrical pole is made from Q235B angle steel or Q355B for heavier pole work. Common specifications include L50×5×1000 mm, L63×6×1800 mm, L75×6×1800 mm, and 2000-2500 mm heavy-duty lengths.read more -
![Galvanized Cross Arm]()
Galvanized Cross ArmGalvanized cross arm is made from Q235B angle steel with hot-dip galvanized surface. Common sizes include L50×5×1000 mm, L63×6×1800 mm, L75×6×1800 mm, and heavy-duty L80×8 or L90×8 lengths from...read more -
![Band Pole]()
-
![Utility Pole Band]()
Utility Pole BandUtility Pole Band uses Q235B or Q355B steel with hot-dip galvanizing, or 304/316 stainless steel for corrosive areas. Common pole diameters include φ114, φ140, φ165, φ180, φ219, φ273, φ300, and...read more -
![Pole Clamping Band]()
Pole Clamping BandPole Clamping Band is made from Q235B, Q355B, 304, or 316 material with 4-8 mm thickness and 40-80 mm width. It can fit round poles from φ42 mm to φ400 mm and use 4.8 or 8.8 grade bolt sets.read more
Manufacturing & Technical Capabilities
Rather than forcing buyers to parse individual product parameters on a category page, Pubang provides clear technical parameters and manufacturing thresholds across our entire hardware lineup.
Table 1: Material Grades & Mechanical Performance Scope
|
Material Category |
Standard Steel Grades |
Mechanical Grade / Class |
Tensile Strength Range |
Key Engineering Advantage |
|
Carbon Structural Steel |
Q235B (ASTM A36 / S235JR equivalent) |
Grade 4.6, 4.8, 5.6 |
370 – 500 MPa |
Excellent weldability, ductility, and structural value |
|
High-Yield Structural Steel |
Q355B (ASTM A572 Gr.50 / S355JR equivalent) |
Grade 6.8, 8.8 |
470 – 630 MPa |
Enhanced yield strength for heavy cross arms and pole bands |
|
Alloy & High-Tensile Steel |
45#, 40Cr, 35CrMoA |
Grade 8.8, 10.9 |
800 – 1040 MPa |
Superior tensile & shear strength for high-stress foundation bolts |
|
Stainless Steel |
AISI 304 (A2-70), AISI 316 (A4-80) |
Class 70, Class 80 |
500 – 750 MPa |
Superior resistance to coastal salt spray and aggressive chemicals |
Table 2: Dimensional Capabilities & Processing Thresholds
|
Product Category |
Diameter / Profile Range |
Thickness / Width Scope |
Standard Lengths |
Custom Processing Options |
|
Pole Clamps & U-Bolts |
M8, M10, M12, M16 Thread Rods |
Pipe OD: 1/2" to 2-1/2", 48–89 mm |
Standard U-bend dimensions |
Pitch thread customization, UNC/Metric threads |
|
Utility Pole Bands |
Fits Poles φ42 mm to φ400 mm |
Thickness: 4–8 mm; Width: 40–80 mm |
Curvature tailored to pole taper |
Variable hole pitch, single/double ear bands |
|
Steel Cross Arms |
Angle: L50×5 to L90×8 mm; Channel: 10# & 12# |
Web thickness: 5.0 to 8.0 mm |
1.0 m to 3.0 m span |
CNC hole punching, slotted holes, bevel cutting |
|
Foundation Bolts |
M16 to M48 (5/8" to 2" imperial) |
Thread length: 80 mm to 300 mm |
200 mm to 2000+ mm |
L-type, J-type, Welded Plate, Threaded Rods |
|
Cable Brackets |
Arm Length: 300, 400, 500, 600 mm |
Plate thickness: 2.5 mm to 4.0 mm |
Multi-tier support frames |
Customized mounting hole arrangements |
Table 3: Surface Treatment & Corrosion Protection Standards
|
Surface Protection |
Specification / Standard |
Average Coating Thickness |
Salt Spray Endurance |
Typical Application |
|
Hot-Dip Galvanizing (HDG) |
ISO 1461 / ASTM A153 |
65 µm – 85 µm (500–600 g/m²) |
> 1,000 Hours (No Red Rust) |
Outdoor overhead lines, substations (20+ Years Life) |
|
Electro-Galvanizing (Zinc Plating) |
ISO 2081 / ASTM B633 |
8 µm – 15 µm |
> 48–96 Hours |
Indoor electrical cabinets & temporary hardware |
|
Stainless Passivation |
ASTM A967 |
N/A (Chemical Passivation) |
> 500 Hours |
Coastal, marine, and underground cable vaults |
How to select suitable electrical fitting accessories
To help procurement managers and project engineers identify the correct hardware configuration, Pubang provides straightforward technical coordination based on standard product specifications and material selections.
Define Application & Hardware Type
Identify the required product category (e.g., Pole Band, Cross Arm, Foundation Bolt, or Cable Bracket) based on the structural installation layout.
Specify Dimensions & Material Grade
Select from our standard dimensional range or request specific material grades (e.g., Q235B vs Q355B for steel profiles; Grade 4.6 vs 8.8 for anchor bolts; SS304 vs SS316 for corrosive zones).
Confirm Surface Finish & Anti-Corrosion Rating
Determine the appropriate protective coating according to environmental exposure (Hot-Dip Galvanizing compliant with ISO 1461 for outdoor utility lines, or Passivated Stainless Steel for chemical/coastal environments).
Review Project BOM & Receive Quotation
Submit your itemized product list (Bill of Materials) or technical requirements. Our sales team conducts a technical review and provides an itemized quotation within 12 hours.
Why Choose Pubang Fastener Manufacturing?
Selecting a reliable power fittings manufacturer requires a balance between product quality, processing capability, and efficient order handling. Here is how Hebei Pubang Fastener Manufacturing Co., Ltd. delivers value to international buyers:
Core Advantages
Strategic Location in China’s Fastener Industrial Cluster
Located in Yongnian District, Handan City, Hebei Province—the largest fastener manufacturing hub in China. This cluster ecosystem grants us direct access to high-quality raw material suppliers, integrated processing facilities, and competitive regional logistics.
Integrated 3,000 m² Manufacturing Facility
Operating a 3,000 m² production workshop equipped with dedicated machinery for cutting, drilling, bending, welding, threading, and surface finishing. Integrated production allows for tight dimensional control and predictable order lead times.
Rigorous Batch Quality Inspection
Every production lot undergoes systematic inspection before shipment, including dimensional verification, thread pitch gauging with Go/No-Go gauges, and electromagnetic zinc coating thickness testing.
Standardized Quality Management & Traceability
Our manufacturing and management operations align with ISO 9001:2015 standards. Mill Test Certificates (MTC) and factory inspection records are provided with shipments to verify material grades and coating specifications.
Seamless Export Packaging & Order Coordination
Products are packaged in reinforced woven bags, heavy-duty cartons, and seaworthy wooden pallets to ensure zero damage during ocean freight and multi-modal transit.
FAQ
Q: Can Pubang supply power fittings matching specific project material grades and standards?
A: Yes. While our hardware follows standard dimensions, we offer flexible material options. You can specify steel grades such as Q235B, Q355B, 45#, 40Cr, or stainless steel (SS304/SS316), as well as bolt strength grades (4.6, 5.6, 8.8, 10.9) to comply with your project requirements.
Q: What anti-corrosion standards do your hot-dip galvanized fittings comply with?
A: Our hot-dip galvanized fittings strictly meet ISO 1461 and ASTM A153 standards, achieving an average zinc coating thickness of 65–85 µm. This guarantees 20+ years of maintenance-free service life in outdoor utility line environments.
Q: What documentation do you provide for project engineering approval?
A: We provide Mill Test Certificates (MTC according to EN 10204 3.1), dimensional inspection sheets, and zinc coating thickness test reports upon request to support your project quality review.
Q: What is the lead time for standard and consolidated engineering orders?
A: Standard product orders are typically fulfilled within 15–20 days. For consolidated orders combining multiple hardware types (e.g., cross arms, pole bands, and anchor bolts), lead times range from 20 to 25 days depending on tonnage.
We are one of the most professional power fittings manufacturers and suppliers in China, featured by quality products and good price. Please rest assured to buy advanced power fittings for sale here and get quotation from our factory. We also accept customized orders.
ball clevis, link plate, socket clevis
