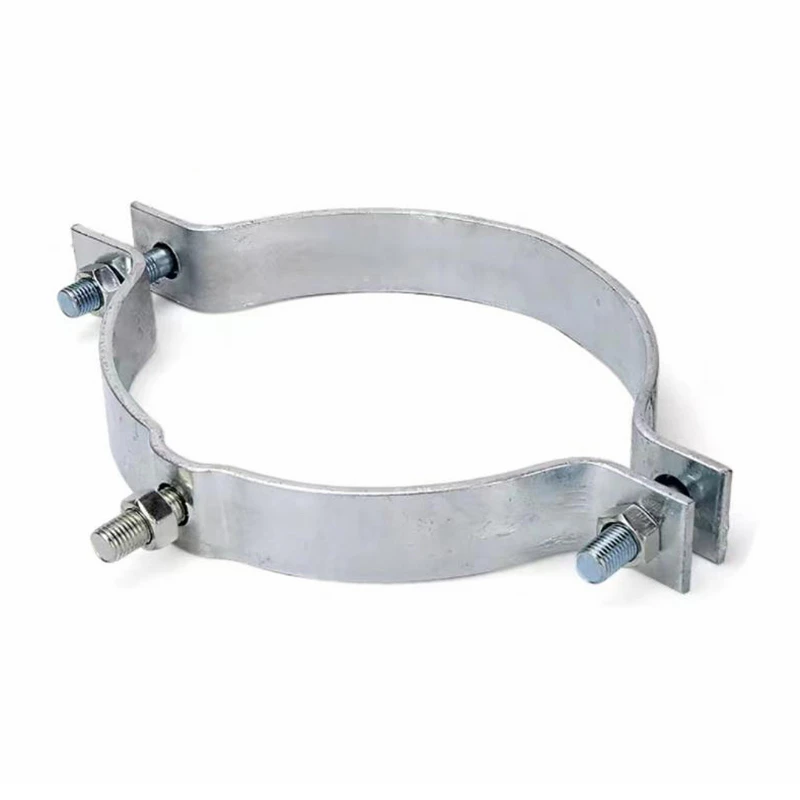

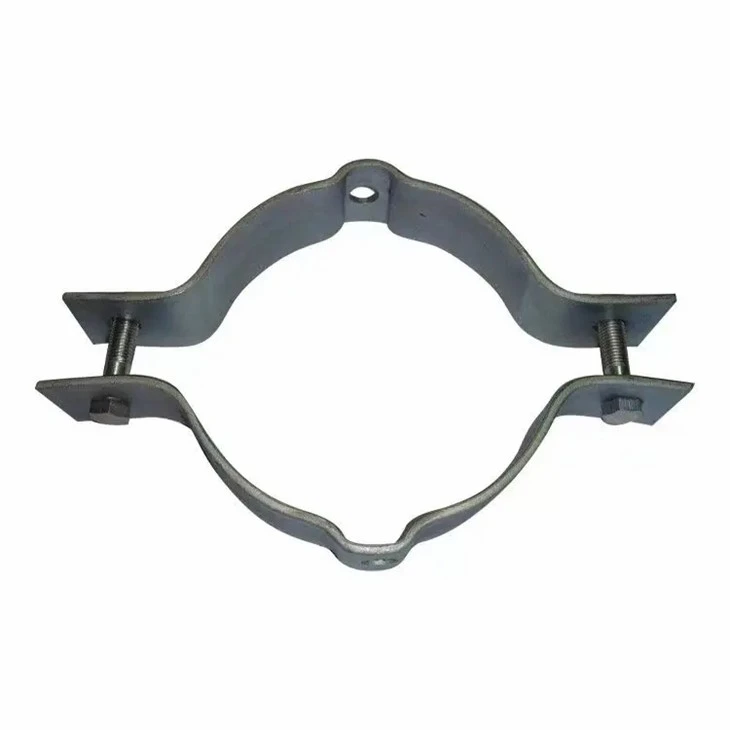

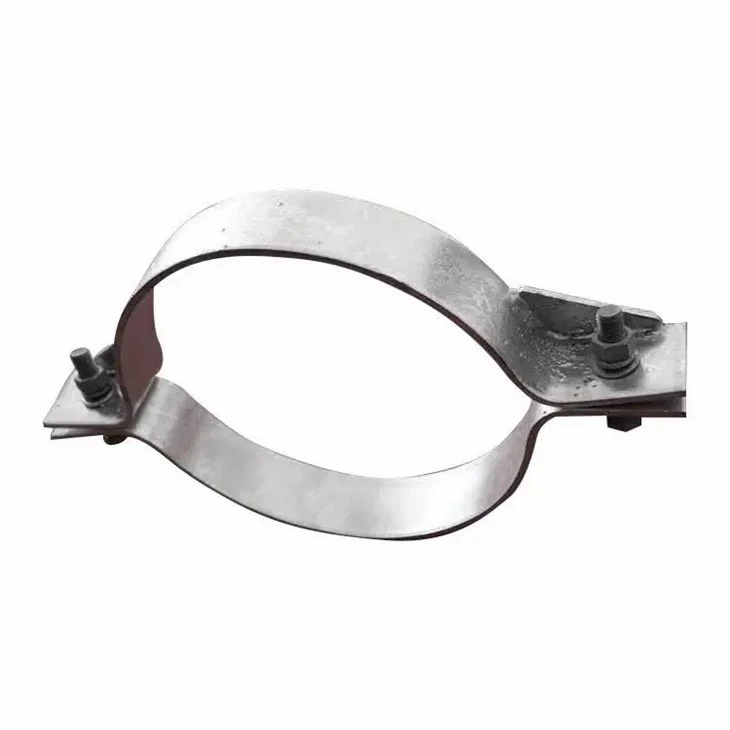

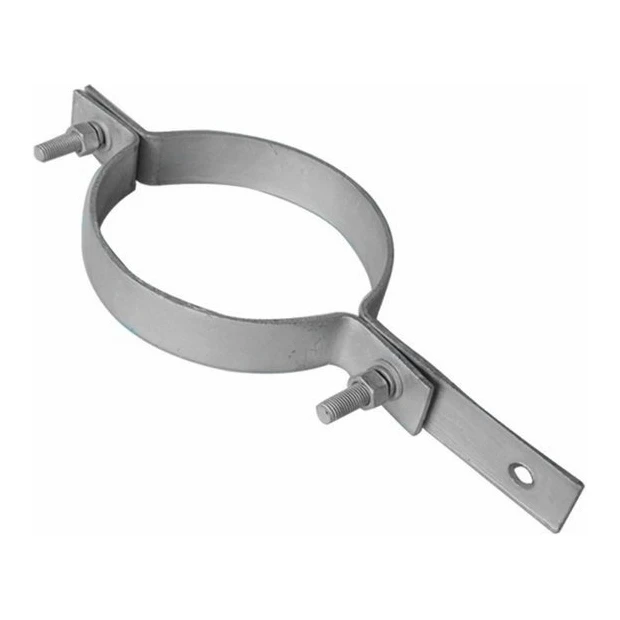

Band pole is used to clamp round poles, pipe piles, photovoltaic posts, and utility poles without welding to the pole surface. It is fitted with bolts, nuts, and washers, and the band arc is made to the pole outside diameter. The advantage is that φ60, φ114, φ165, φ300, and other pipe sizes can be separated by exact diameter, so the band closes evenly and does not bite only at two points.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B, Q355B, 304, 316 |
|
Strength Grade |
4.8 or 8.8 grade bolts by order |
|
Pole Diameter |
φ42, φ48, φ60, φ76, φ114, φ140, φ165, φ180, φ219, φ273, φ300, φ345, φ400 mm |
|
Band Thickness |
4 mm, 5 mm, 6 mm, 8 mm |
|
Band Width |
40 mm, 50 mm, 60 mm, 80 mm |
|
Surface Treatment |
Hot-dip galvanized ≥65 μm, zinc-aluminum-magnesium, or stainless |
|
Accessories |
Bolts, nuts, flat washers, spring washers |
Product Advantages
1) Band pole can be formed for small support pipes or large pipe piles, so the same order can cover several pole areas.
2) Q355B is available for φ273, φ300, and φ345 large pipe piles where the band carries more force.
3) Hot-dip galvanized, stainless, and zinc-aluminum-magnesium options let the buyer match inland, coastal, or chemical site conditions.
Main Applications
Used for photovoltaic round posts, fishery-solar pipe piles, utility poles, signal poles, and pipe support systems.
Suitable for fixing brackets where welding on the pole is not planned.
Production Process
Steel strip is cut, punched, rolled to diameter, assembled with bolts, then galvanized or packed as stainless parts.
Large diameter bands are checked with a diameter gauge or sample pipe before packing.
