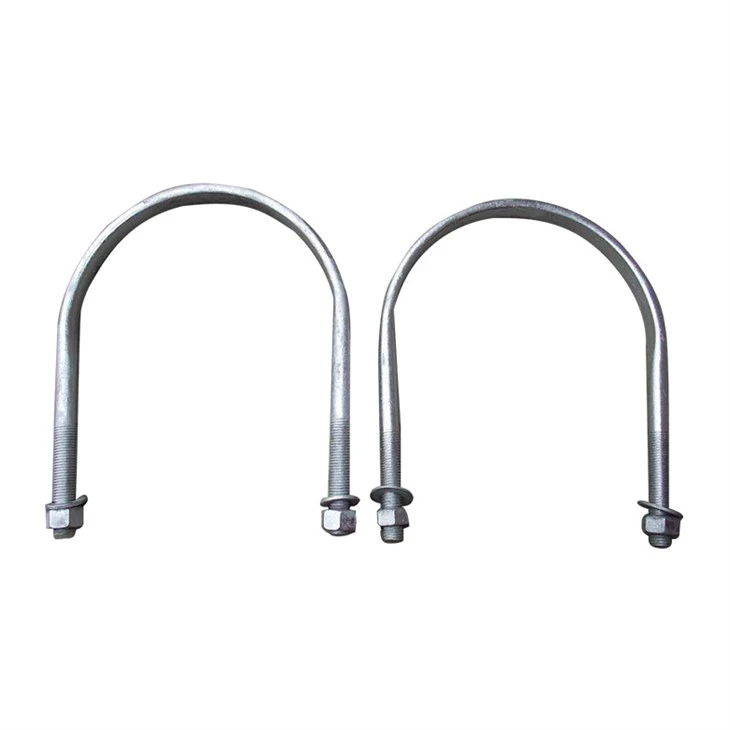

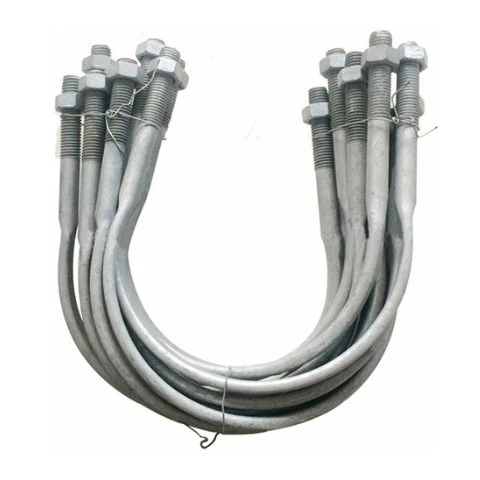

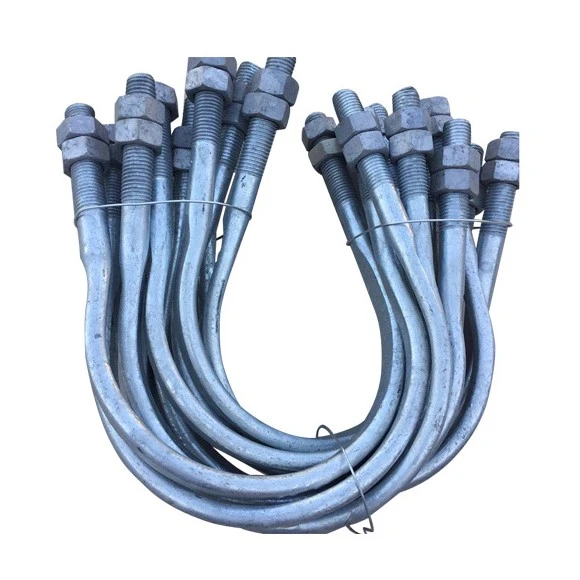

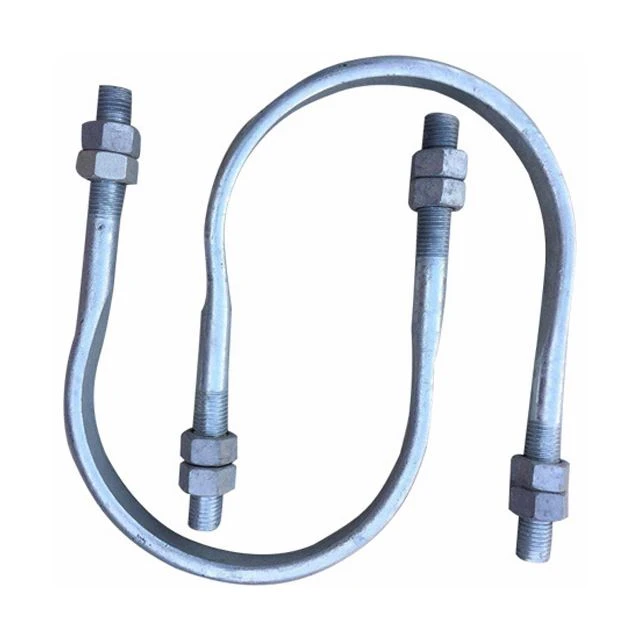

Galvanized u clamp is used to lock round pipe, pole, or frame parts in photovoltaic supports, utility pole fittings, and steel structure fixing points. It works with two nuts, flat washers, spring washers, and a saddle plate when the drawing needs one. The main advantage is that pipe diameter, thread length, rod grade, and coating thickness can be confirmed before production, so the clamp closes on the real pipe instead of a loose catalogue size.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B carbon steel |
|
Strength Grade |
4.8 grade or 8.8 grade by order |
|
Thread Diameter |
M10, M12; other metric sizes by drawing |
|
Pipe Diameter |
48 mm, 60 mm, 76 mm, 89 mm, 114 mm |
|
Thread Length |
Made according to pipe diameter and nut allowance |
|
Surface Treatment |
Hot-dip galvanized, zinc layer usually not less than 65 μm |
|
Set Components |
U bolt, nuts, flat washers, spring washers, and saddle plate if required |
Product Advantages
1) Galvanized u clamp uses a formed U body, so the two legs keep the same spacing after bending and threading.
2) Hot-dip galvanizing covers the threaded area and the curved section, which helps outdoor pole work where rainwater stays around nuts.
3) Pipe diameter and rod grade are checked together, because a 48 mm pipe and a 114 mm pipe need different opening size and tightening force.
Main Applications
Used for photovoltaic round-pipe supports, light pole accessories, pipe clamps, and frame fixing points.
Also used when one product set must include bolts, washers, and a saddle plate for field installation.
Production Process
Rod cutting is followed by thread rolling, U bending, surface cleaning, hot-dip galvanizing, and set packing.
After galvanizing, the thread fit is checked with matching nuts so the installer does not need to rework the thread on site.
