PV Accessories

• Solar Mounting C Channel

  Solar Mounting C Channel is a cold-formed C section made from Q235B or Q355B steel. Common models include C50, C80, C100, C120, C160, C200, and C300, with 1.5, 1.6, 2.0, 2.5, or 3.0 mm thickness...

  read more
• Photovoltaic Bracket C Purlin

  Photovoltaic bracket c purlin is made from Q235B or Q355B cold-formed steel. Common C sizes include C100×50×20×2.5, C120, C160, C200, and solar bracket sections such as 41×41, 41×62, 41×72, and...

  read more
• Double-Slotted Steel Profile

  Double-Slotted Steel Profile is made from Q235B or Q355B steel and can use hot-dip galvanized or zinc-aluminum-magnesium surface. Common structural references include H100×100, H150×150, H200×100,...

  read more
• Mid Clamps Solar Panels

  Mid clamps solar panels are usually made from 6063-T5 or 6005-T5 aluminum alloy with anodized surface. Common data includes 20 mm, 25 mm, or 28 mm module gap, 25 mm or 30 mm height, and 40-100 mm...

  read more
• End Clamp Solar Panel

  End clamp solar panel is made from 6063-T5 or 6005-T5 aluminum alloy with anodized surface. Common models include Z35, Z40, Z45, and Z50, fitting 30-50 mm module frame thickness and 35-50 mm clamp...

  read more
• Aluminum Solar Rail

  Aluminum Solar Rail is made from 6063-T5 or 6005-T5 aluminum alloy with anodized surface. Common rail sizes include C14 about 40×14×1.5 mm, C18 about 40×18×1.8 mm, C20 41×20×2.0 mm, and...

  read more
• PV Rail System

  PV Rail System uses 6063-T5 or 6005-T5 aluminum rails with anodized surface and matching clamps, splices, T nuts, and bolts. Rail sections can include C14, C18, C20, 40×30, 41×32, 40×40, and 42×46 mm.

  read more

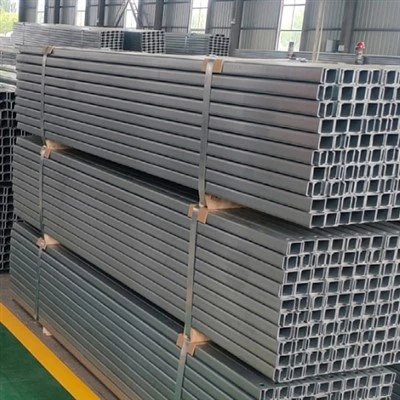

• Solar Square Tube

  Solar square tube is made from Q235B or Q355B steel with zinc-aluminum-magnesium coating. Common square sizes include 40×40, 50×50, 60×60, 80×80, and 100×100 mm, with 2.0-5.0 mm wall thickness and...

  read more
• Solar Mounting Base Bracket

  Solar mounting base bracket is made from Q235B or Q355B steel with hot-dip galvanized or ZAM surface. Common base plate sizes include 100×100×6, 120×120×6, 150×150×8, 200×200×8, and 250×250×10 mm.

  read more

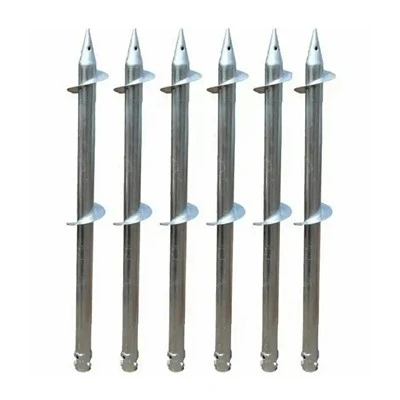

• Galvanized Screw Piles

  Galvanized screw piles are made from Q235B or Q355B steel pipe with hot-dip galvanized surface. Common pipe diameters include φ76, φ89, φ102, φ114, φ140, φ168, and φ219 mm, with 3.0-6.0 mm wall...

  read more

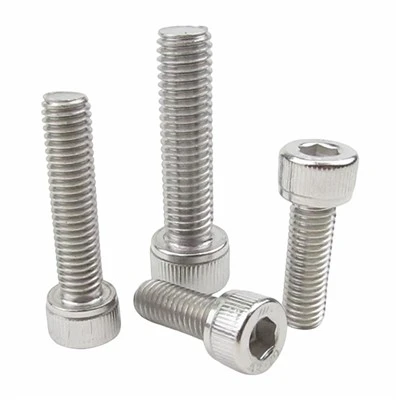

• Allen Head Socket Screw

  Allen head socket screw for photovoltaic clamps is commonly made from 304 stainless steel, with 316 stainless steel for coastal or chemical areas. The common thread is M8, with M8×25, M8×30,...

  read more
• Hex Head Bolt Screw

  Hex head bolt screw is made from hot-dip galvanized carbon steel in 4.8 or 8.8 grade, or from 304/316 stainless steel by project. Common sizes include M8, M10, and M12, with M10×40 to M10×90 and...

  read more
