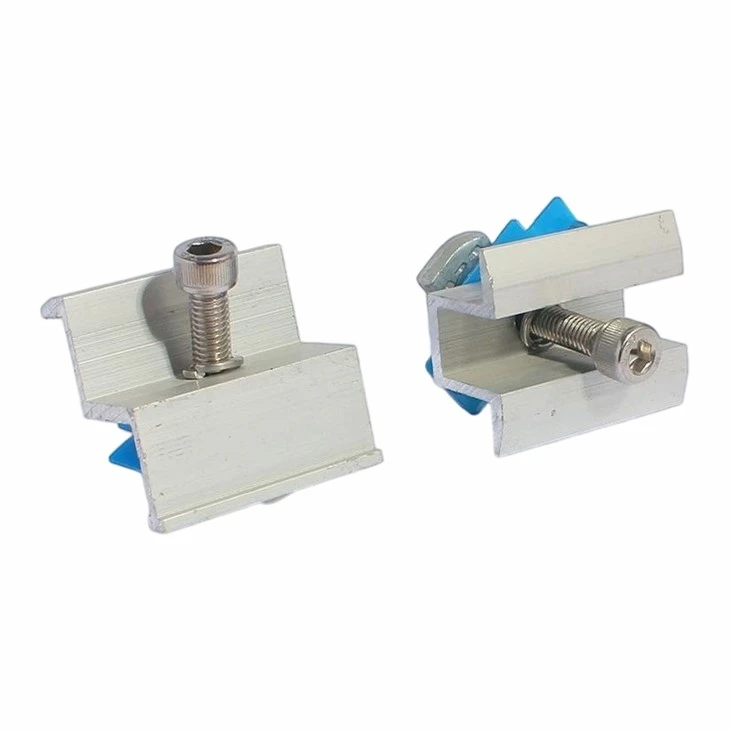

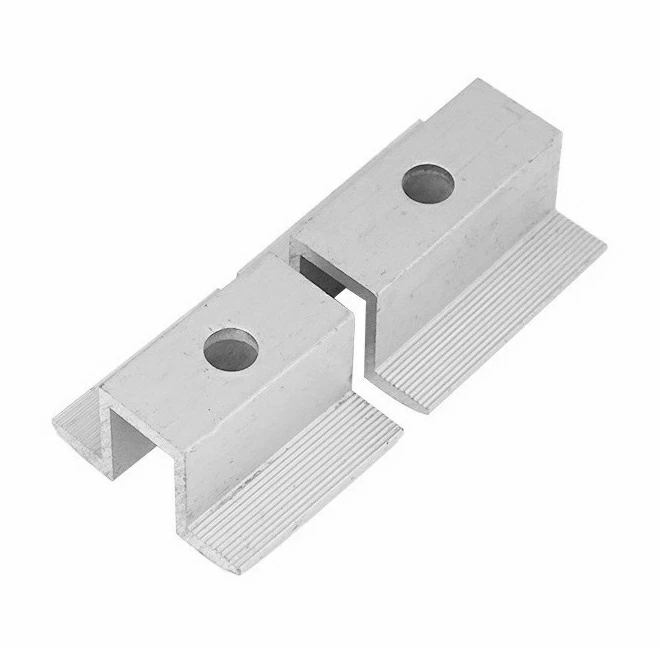

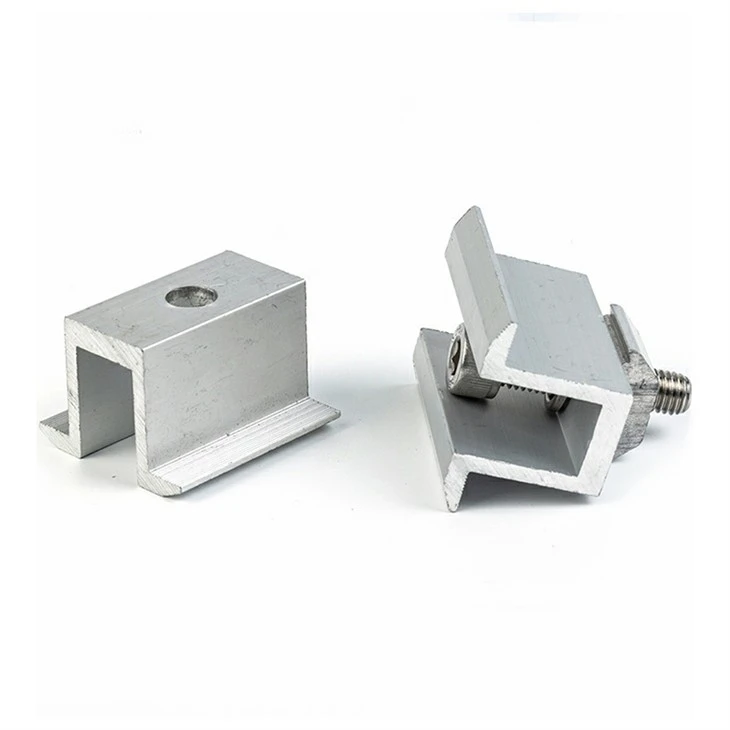

Mid clamps solar panels hold the inner edges of two adjacent photovoltaic modules on the rail. They are used on rooftop, ground, and carport PV systems with framed or double-glass modules. The advantage is fit control: module gap, clamp height, rail slot, and M8 stainless bolt length can be matched, so the pressure point sits on the module frame instead of the glass area.
Product Parameters
|
Parameter |
Specification |
|
Material |
6063-T5 aluminum alloy; 6005-T5 for higher strength |
|
Strength Data |
6005-T5 tensile strength ≥260 MPa reference from supplied data |
|
Module Gap |
20 mm, 25 mm, 28 mm |
|
Height |
25 mm, 26 mm, 30 mm |
|
Length |
40, 50, 60, 80, 100 mm |
|
Example Size |
20-H25×40; 28-H25×50; 20-H30×60; 48×28×25 mm |
|
Surface Treatment |
Anodized, film thickness 8-10 μm or project requirement |
|
Accessory |
M8 stainless bolt, T nut, washer |
Product Advantages
1) Mid clamps solar panels use an aluminum profile that is light and does not add heavy point load to the rail.
2) 20 mm gap is used for many framed modules, while 28 mm can be selected for double-glass or non-standard gaps.
3) M8 stainless bolts and T nuts can be supplied as one set, which helps installers finish rail locking with fewer loose parts.
Main Applications
Used between two solar panels on rooftop PV, ground PV, carport PV, and distributed PV systems.
Suitable for aluminum rails and compatible steel support rails with matching T nuts.
Quality Control
Clamp height, bottom width, anodized surface, bolt fit, and T nut sliding are checked before packing.
Mixed 25 mm and 30 mm height clamps are labelled separately to avoid installation errors.
