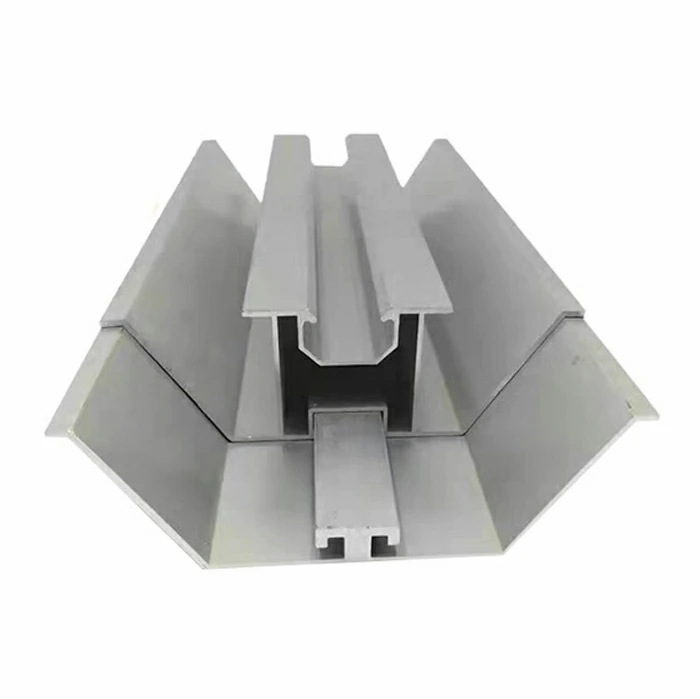

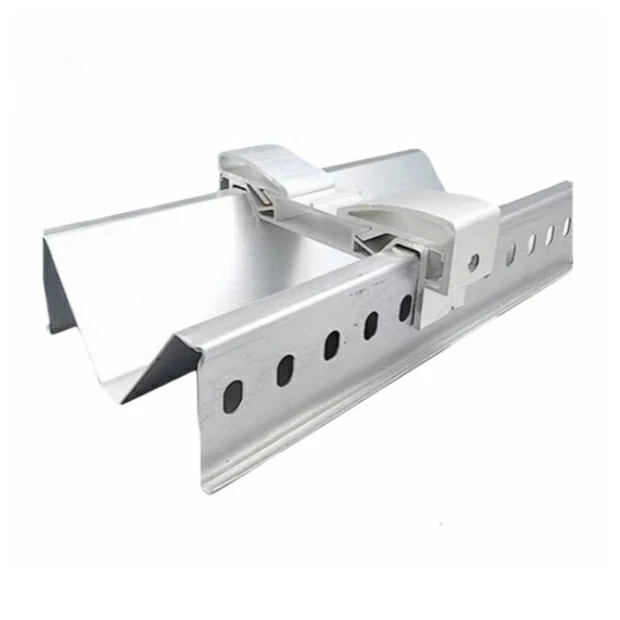

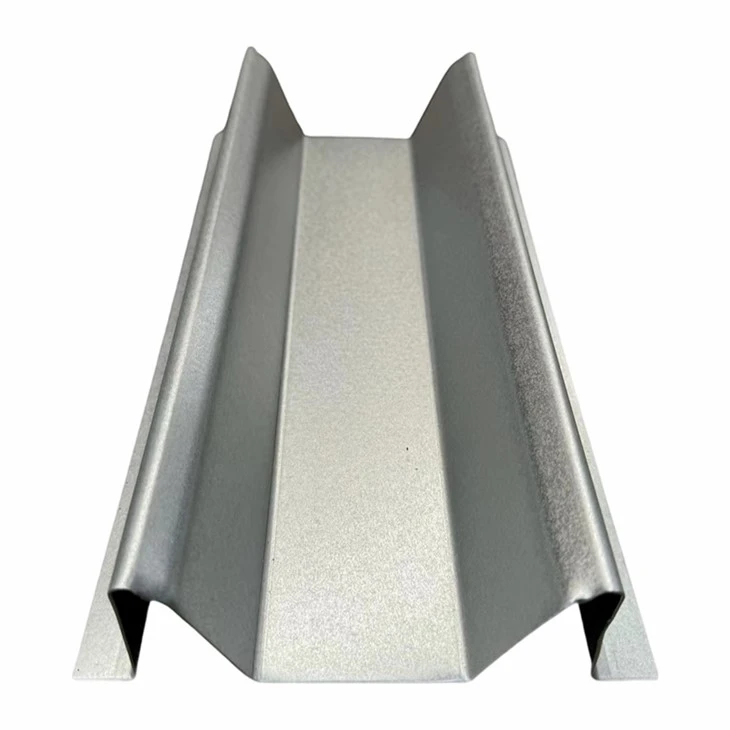

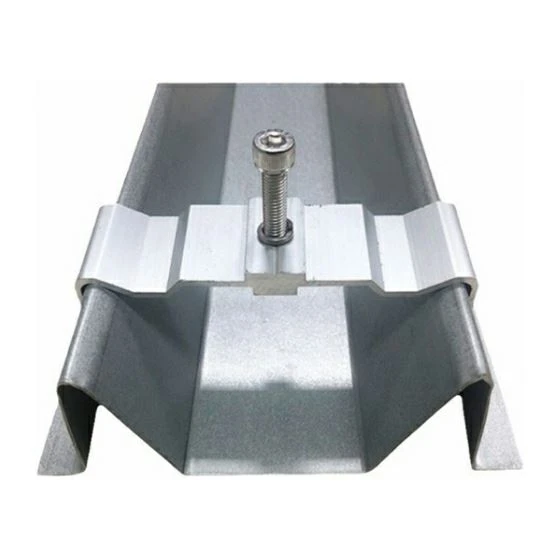

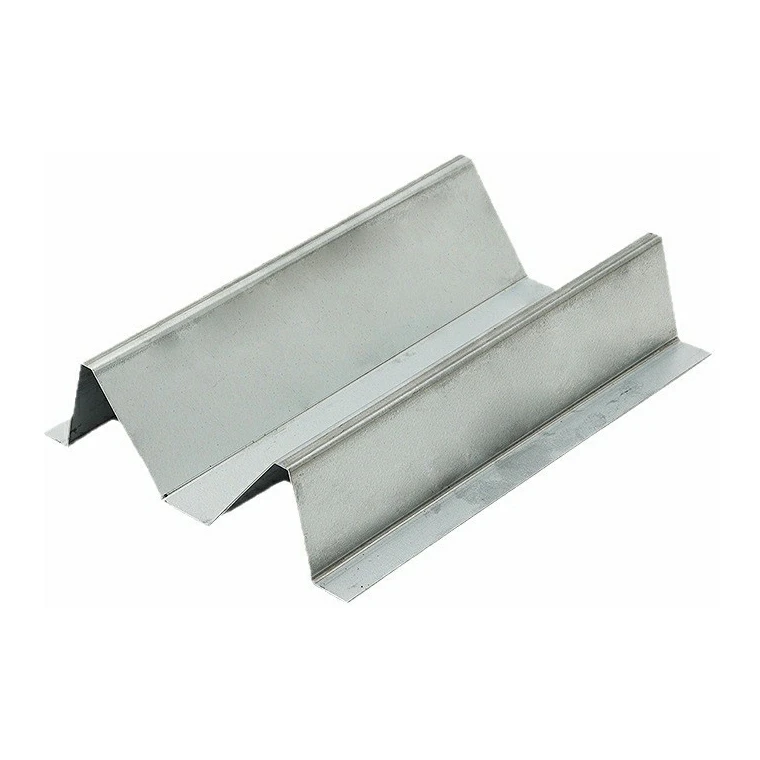

Zam solar water gutter collects and guides rainwater in photovoltaic roofs, PV carports, and distributed solar projects. It can be made as M-type main gutter, W-type small gutter, or ridge drainage gutter. The advantage is the ZAM coating: 275 g/m² coating and cut-edge self-protection help the formed gutter resist corrosion after bending, cutting, and water flow exposure.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B or Q355B base steel |
|
Coating |
ZAM275, zinc-aluminum-magnesium 275 g/m² |
|
Thickness |
1.2-1.5 mm for small gutter; 1.5-2.0 mm for main gutter |
|
Length |
6 m, 9 m, 12 m or fixed length |
|
Main Gutter Size |
170×130×50 mm, 164×125×50 mm, 150×120×45 mm |
|
Small Gutter Size |
70×20, 70×30, 162×50 mm |
|
Ridge Gutter Size |
200×80, 220×90 mm |
|
Surface Treatment |
Passivated ZAM, anti-fingerprint surface by order |
Product Advantages
1) Zam solar water gutter uses ZAM275 coating, which is suitable for PV roof water channels where cut edges and bends contact rainwater.
2) M-type main gutter and W-type small gutter can be matched in one roof layout to guide water from module gaps to main drainage lines.
3) Fixed 6 m, 9 m, and 12 m lengths reduce joints on long roof runs.
Main Applications
Used for industrial and commercial PV roofs, PV carports, module gap drainage, roof ridge drainage, and distributed solar roof systems.
Suitable for drainage layouts that need formed metal gutters matched to module rows.
Installation Notes
Check roof slope, module row direction, gutter overlap, and end outlet position before ordering.
During installation, cut edges should be protected when the project requires additional corrosion treatment.
Customization Service
We can produce by drawing, sample, or project size list when standard catalogue sizes do not match the site.
Before production, the order should confirm material grade, surface finish, holes, length, and accessory quantity.
