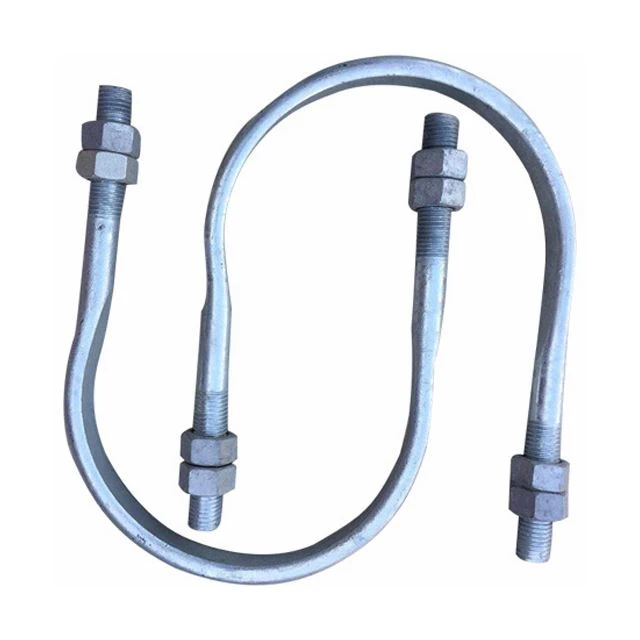

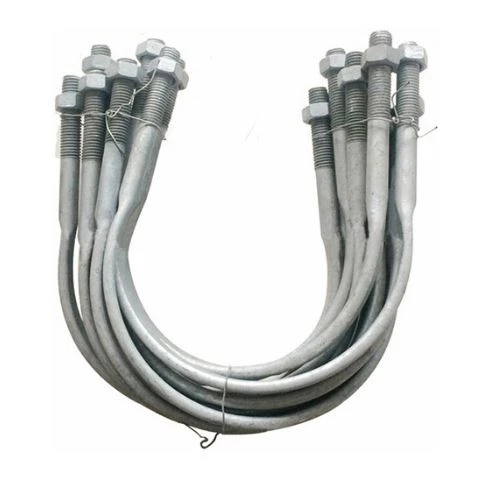

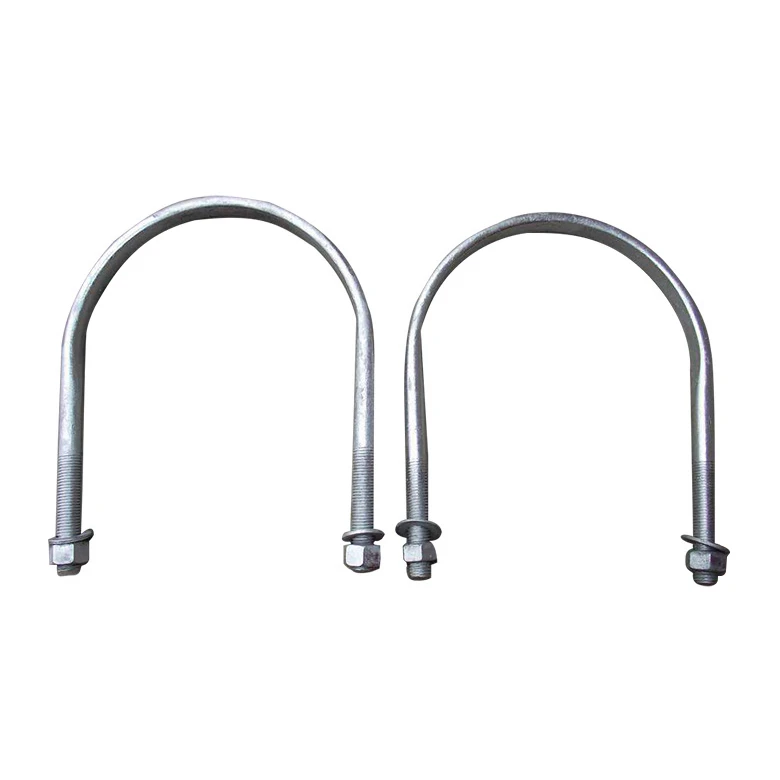

SS U bolt clamp is used where the fixing point needs stainless corrosion resistance, such as damp roofs, coastal photovoltaic support frames, pipe holding, and utility hardware. The clamp body is bent from stainless rod, then matched with stainless nuts and washers. Its value is the material match: the body, nuts, and washers can stay in one stainless grade, which reduces mixed-metal contact during installation.
Product Parameters
|
Parameter |
Specification |
|
Material |
304 stainless steel; 316 stainless steel for coastal or chemical areas |
|
Strength Grade |
Stainless class by order; carbon steel grade not mixed in the same set |
|
Thread Diameter |
M8, M10, M12 |
|
Pipe Size |
1/2 inch, 3/4 inch, 2 inch, 2-1/2 inch, 48 mm, or drawing size |
|
Length Basis |
Thread length and leg height according to pipe outside diameter |
|
Surface Treatment |
Plain stainless, passivated stainless, or polished surface |
|
Accessories |
Stainless nuts, flat washers, spring washers, saddle plate if needed |
Product Advantages
1) SS U bolt clamp keeps the clamp body and accessories in the same stainless grade, so the buyer can avoid mixing galvanized and stainless parts in one set.
2) 316 stainless steel can be selected for salt mist or chemical plant areas when 304 is not enough for the site exposure.
3) The pipe opening is made from the confirmed outside diameter, so 2 inch and 2-1/2 inch clamps are not packed as the same part.
Main Applications
Used for damp rooftop PV supports, pipe mounting, stainless handrail fixing, and pole accessories in corrosive areas.
Suitable when the project needs clean stainless appearance without a zinc coating layer.
Packing and Transport
Small stainless sets are packed by piece or by set to keep nuts and washers with the clamp body.
Mixed sizes can be separated by label, pipe diameter, and thread diameter before carton packing.
