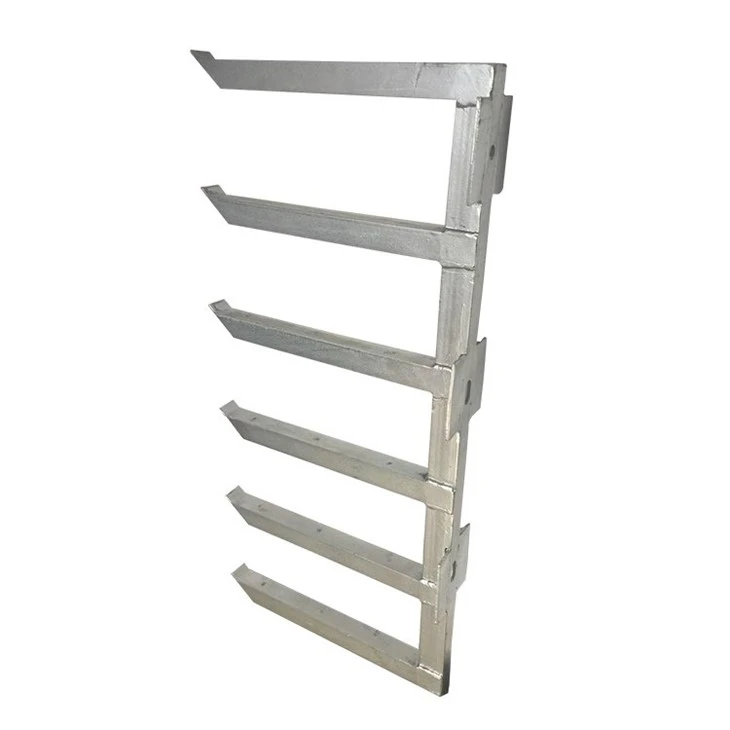

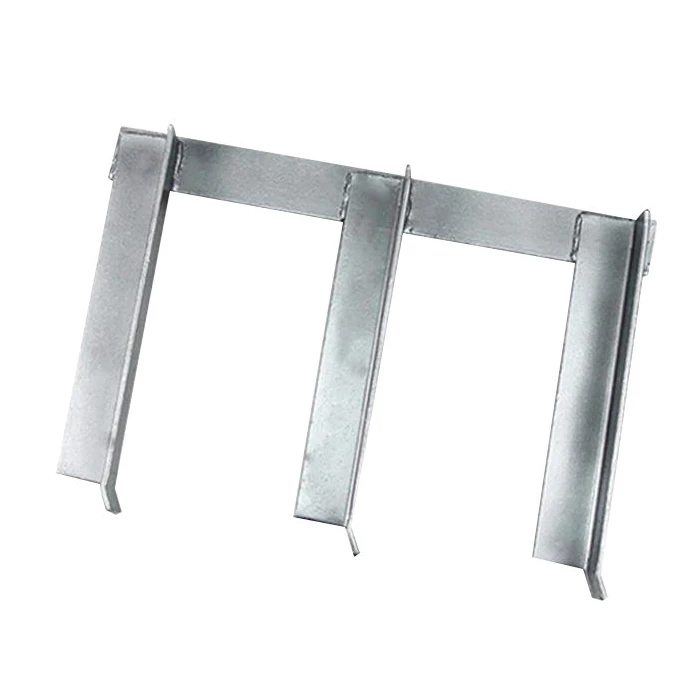

Hot DIP Galvanized Cable Support Bracket supports cable trays and cable routes in cable trenches, tunnels, substations, and power rooms. The bracket can be made from angle steel, plate, or welded steel profiles. Its advantage is that the arm length, hole size, plate thickness, and galvanized layer are confirmed with the cable tray width, so the cable line has a fixed support point instead of a loose field-welded part.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235 steel |
|
Strength Basis |
Structural steel section by load and arm length |
|
Arm Length |
300 mm, 400 mm, 500 mm, 600 mm or drawing size |
|
Thickness |
2.5-4 mm for plate type; angle steel by drawing |
|
Surface Treatment |
Hot-dip galvanized, zinc layer not less than 65 μm |
|
Installation Hole |
Round or slotted holes by anchor bolt size |
|
Reference Use |
Cable trench, tunnel cable bracket, substation cable support |
Product Advantages
1) Hot DIP Galvanized Cable Support Bracket uses hot-dip galvanizing on the welded or formed bracket, so the hole edge and arm end are protected for trench conditions.
2) The support length can follow cable tray width, which makes 300 mm and 600 mm brackets easy to separate on site.
3) Slotted holes can be added where the wall anchor position needs small adjustment during installation.
Main Applications
Used in cable trenches, substations, tunnels, industrial cable rooms, and solar power station cable routes.
Suitable for cable tray support where galvanized steel is required.
Quality Control
Weld seam, arm straightness, hole spacing, zinc layer, and burrs are checked before delivery.
For tunnel orders, heavy-duty brackets are packed by length and bracket mark to avoid mixing different arms.
