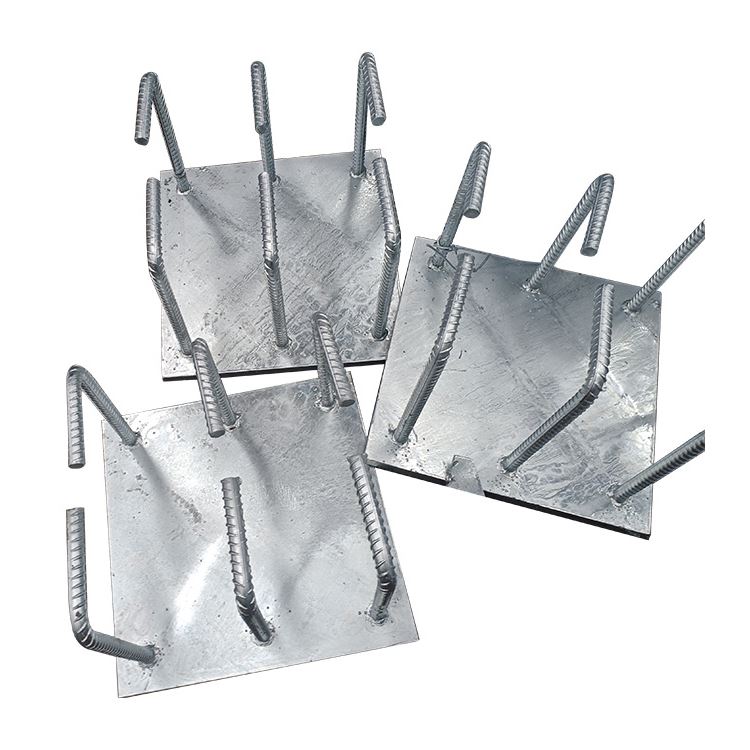

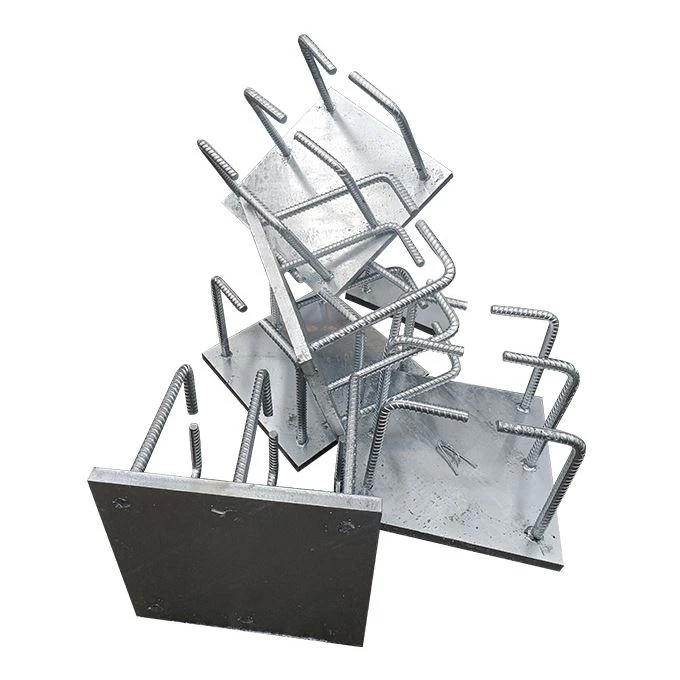

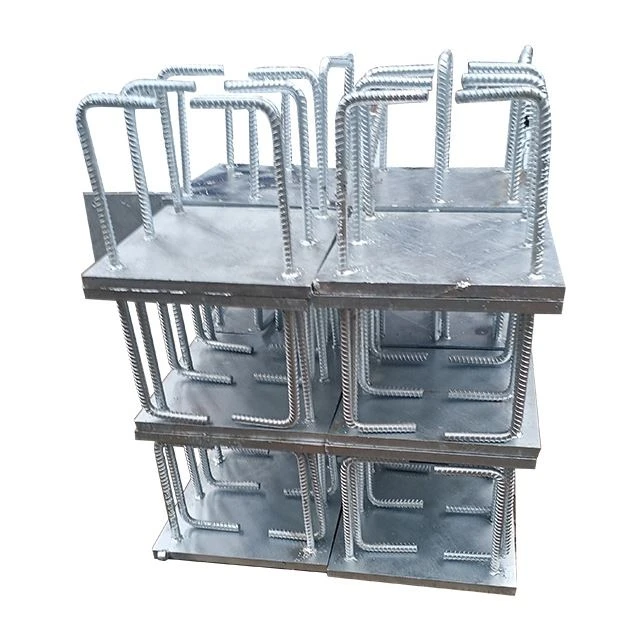

Embed plate with headed studs is a concrete embedment part made from a steel plate and welded anchors. It is used for photovoltaic support bases, cable brackets, steel posts, and structural connection points. The advantage is that the plate and anchors are delivered as one piece, so the installer can place the assembly in concrete with the correct anchor quantity, spacing, and plate face direction.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B or Q355B plate; HRB400 anchor bars or headed studs |
|
Plate Size |
200×200, 300×300, 400×200, 400×300, 400×400, 500×500 mm |
|
Plate Thickness |
8, 10, 12, 14, 16, 20 mm |
|
Anchor Diameter |
Φ12, Φ14, Φ16 common |
|
Anchor Length |
150-300 mm by drawing |
|
Anchor Quantity |
4 pcs or 6 pcs common |
|
Surface Treatment |
Black plate, hot-dip galvanized exposed face, or stainless by order |
Product Advantages
1) Embed plate with headed studs reduces site welding because the anchor bars or studs are welded to the plate before delivery.
2) The 4-anchor or 6-anchor layout can be matched to the plate size and concrete depth before pouring.
3) Plate thickness and anchor length are checked together, which helps the embedded part carry bracket or column load after curing.
Main Applications
Used for PV support foundations, cable bracket bases, light steel columns, railing posts, and equipment mounting pads.
Suitable for concrete work where plate position and anchor depth must be fixed.
Production Process
The plate is cut, drilled if needed, anchors are welded, welds are checked, and the surface is cleaned or galvanized according to the order.
Anchor length and plate direction are marked when the assembly has a front side or installation face.
