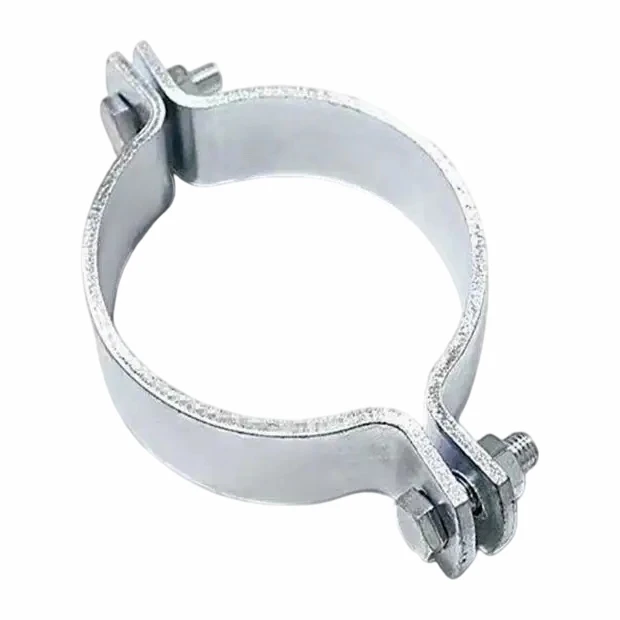

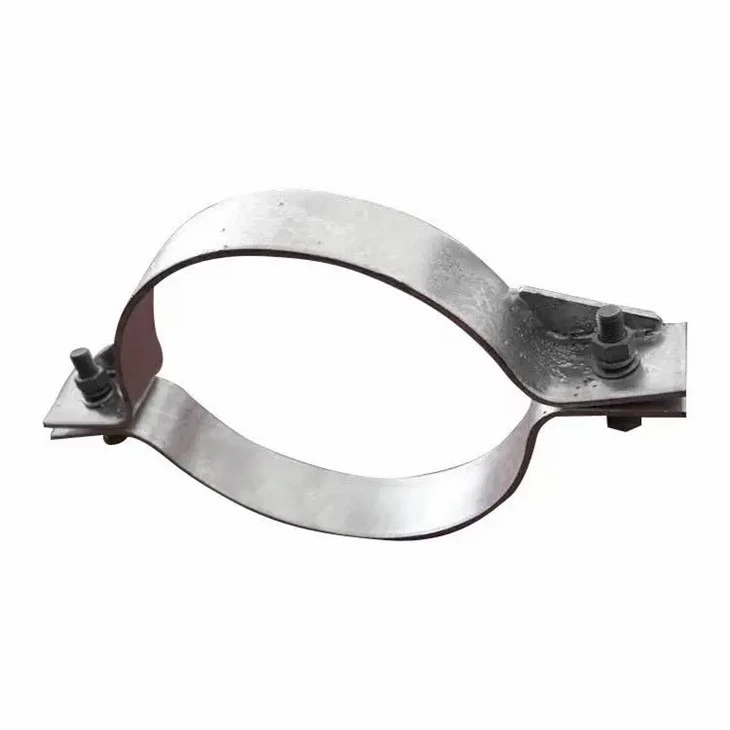

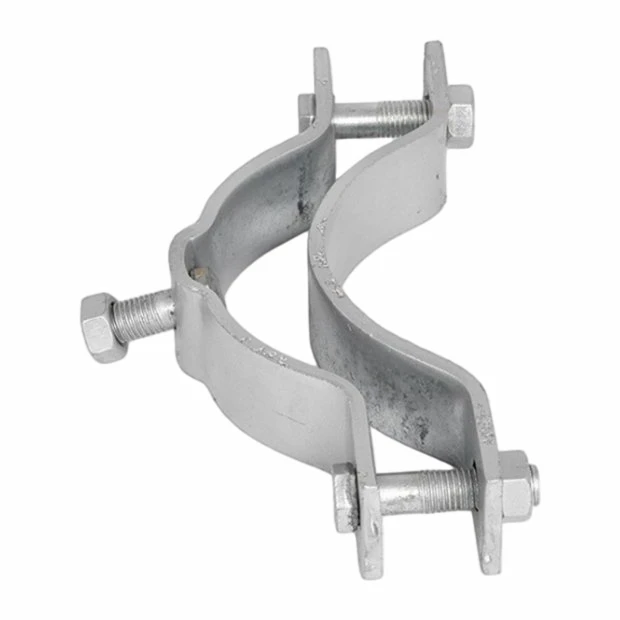

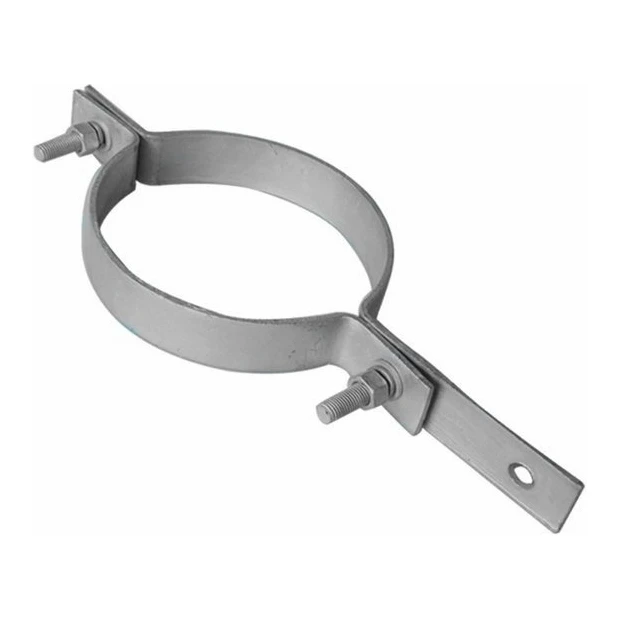

Pole Clamping Band is a two-piece or formed steel band used to hold brackets, cross arms, PV supports, and pole line hardware on round poles. It tightens around the pole with bolts instead of welding. The advantage is size control: pipe diameter, band width, thickness, bolt diameter, and coating type are chosen from the real pole data, which helps the clamp hold evenly on small support pipes and large pipe piles.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B, Q355B, 304 stainless steel, 316 stainless steel |
|
Bolt Grade |
4.8 grade or 8.8 grade |
|
Pole Diameter |
φ42-φ400 mm |
|
Thickness |
4 mm, 5 mm, 6 mm, 8 mm |
|
Width |
40 mm, 50 mm, 60 mm, 80 mm |
|
Surface Treatment |
Hot-dip galvanized ≥65 μm, zinc-aluminum-magnesium, or stainless |
|
Structure |
Two-piece clamp, round band, or square-pipe band by drawing |
Product Advantages
1) Pole Clamping Band can be made for round poles or square posts, so one project can keep the same tightening style across different support positions.
2) The two-piece structure makes installation easier where the pole is already standing and cannot be sleeved from the top.
3) Band width and thickness can be increased for φ300 or φ345 pipe piles used in fishery-solar and ground PV projects.
Main Applications
Used for pole line hardware, PV pipe pile brackets, lighting poles, cable support points, and round post mounting.
Suitable for retrofit work where drilling the pole is not allowed.
Packing and Transport
Each clamp set can be packed with its bolts, nuts, and washers in the same bag.
Large bands are bundled by diameter and protected from edge impact during truck loading.
Customization Service
We can produce by drawing, sample, or project size list when standard catalogue sizes do not match the site.
Before production, the order should confirm material grade, surface finish, holes, length, and accessory quantity.
