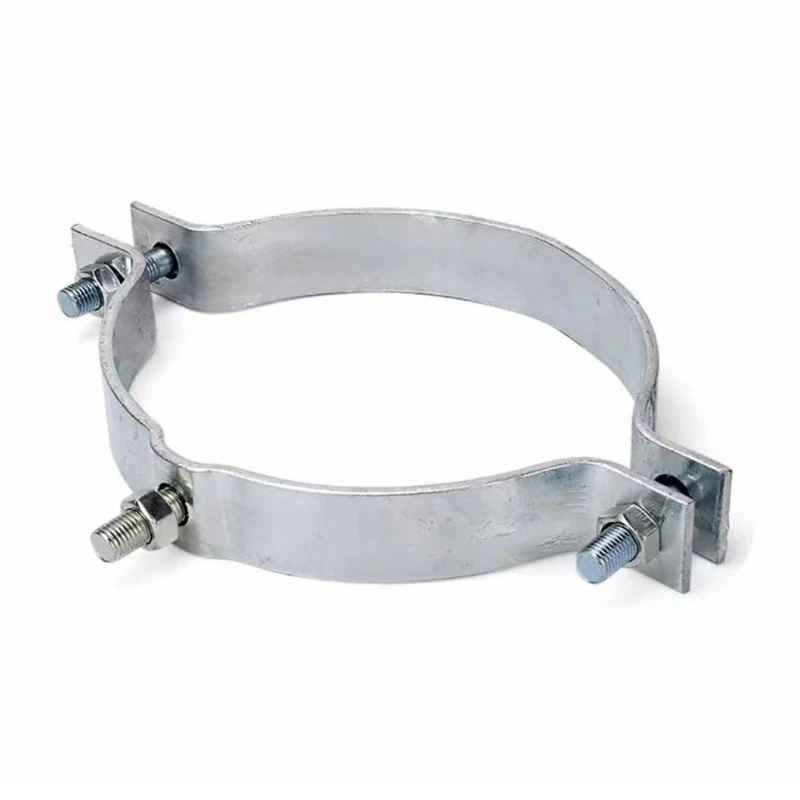

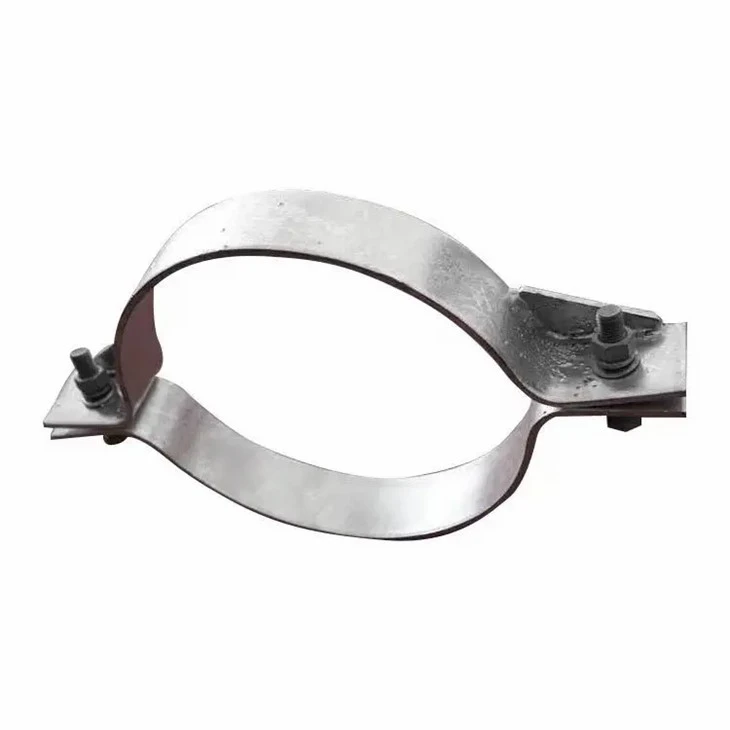

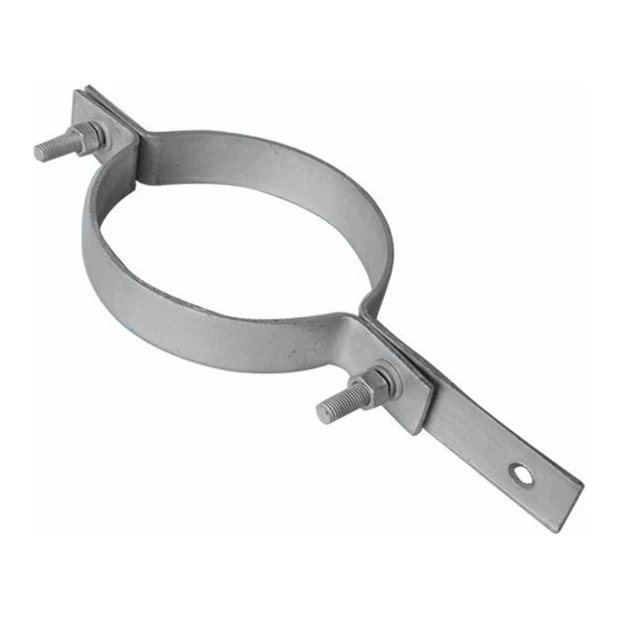

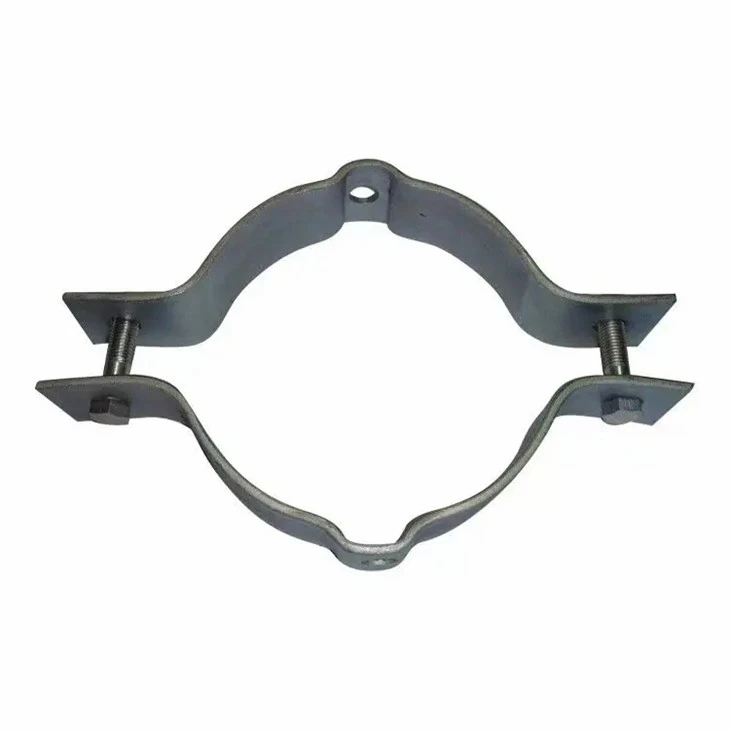

Utility Pole Band fastens brackets, cross arms, cable supports, and photovoltaic accessories to round utility poles or pipe piles. It is made as one-piece or two-piece band, with bolt sets used for tightening. The advantage is that the pole diameter, band thickness, width, and bolt grade can be fixed in the order, so the band matches the pole without extra drilling or welding.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B, Q355B, 304 stainless steel, 316 stainless steel |
|
Bolt Grade |
4.8 or 8.8 grade by order |
|
Pole Diameter |
φ114-φ345 mm common utility and pile sizes |
|
Band Thickness |
5 mm, 6 mm, 8 mm |
|
Band Width |
50 mm, 60 mm, 80 mm |
|
Surface Treatment |
Hot-dip galvanized ≥65 μm, ZAM, or stainless finish |
|
Structure |
One-piece band or two-piece clamping band with bolt sets |
Product Advantages
1) Utility Pole Band is made to pole diameter, so the inner curve contacts the pole surface more evenly than a flat strap.
2) For large pipe piles, Q355B and wider bands can be selected to keep the clamp stable under bracket load.
3) The bolt sets can be packed with each band, which avoids missing nuts and washers at the pole site.
Main Applications
Used for utility pole hardware, distribution line accessories, photovoltaic pipe pile supports, and cable brackets on round poles.
Suitable for installation where pole drilling is not preferred.
Quality Control
Band arc, bolt hole distance, thickness, width, and surface coating are checked before packing.
For diameter groups, each carton or bundle is marked with φ size to avoid mixing φ114 and φ165 parts.
