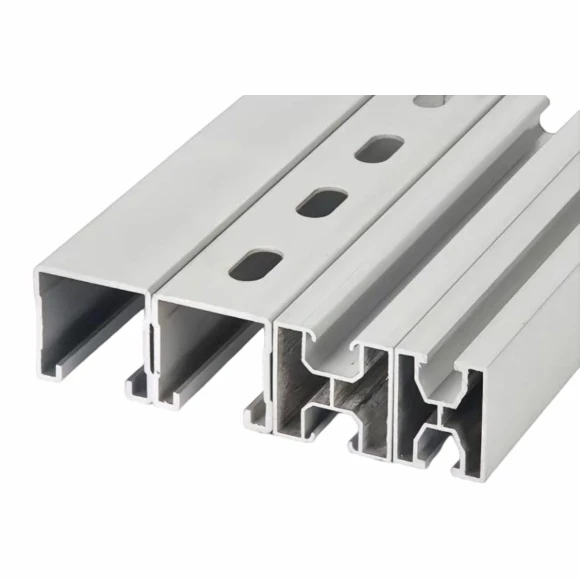

PV Rail System is a group of rail and fastening parts used to support photovoltaic modules on roofs, ground frames, and carports. It connects modules to the bracket structure through rails, splices, mid clamps, end clamps, and M8 stainless fasteners. The advantage is system matching: the rail slot, clamp height, splice length, and bolt set can be selected together, so installers do not mix rail and clamp standards at the site.
Product Parameters
|
Parameter |
Specification |
|
Material |
6063-T5 or 6005-T5 aluminum rail; stainless fasteners |
|
Rail Section |
C14, C18, C20, 40×30, 41×32, 40×40, 42×46 mm |
|
Rail Length |
1.2 m, 2.0 m, 3.0 m, 4-6 m custom |
|
Thickness |
1.5, 2.0, 2.5, 3.0 mm |
|
Slot Reference |
28×5 mm or 30×6 mm by clamp system |
|
Surface Treatment |
Anodized aluminum, 8-15 μm |
|
Set Components |
Rail, splice, mid clamp, end clamp, T nut, M8 bolt, washer |
Product Advantages
1) PV Rail System keeps the rail and clamp accessories in one matched group, which reduces site fitting problems.
2) Rail length and splice position can be arranged according to module row length before packing.
3) Anodized aluminum rail and stainless bolt sets give a common material combination for rooftop PV mounting.
Main Applications
Used for residential rooftop PV, commercial rooftop PV, ground power station rows, and PV carports.
Suitable for projects that buy rail, clamps, splices, and bolts as one system.
Order Notes
Confirm module frame height, rail span, rail length, clamp type, roof hook or base type, and fastener material.
If the system uses different rail heights, each section should have separate labels during packing.
