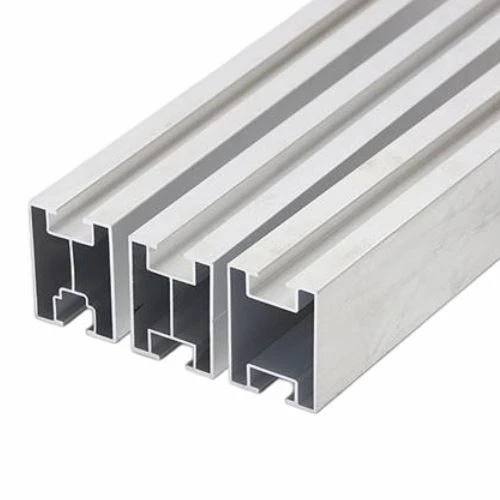

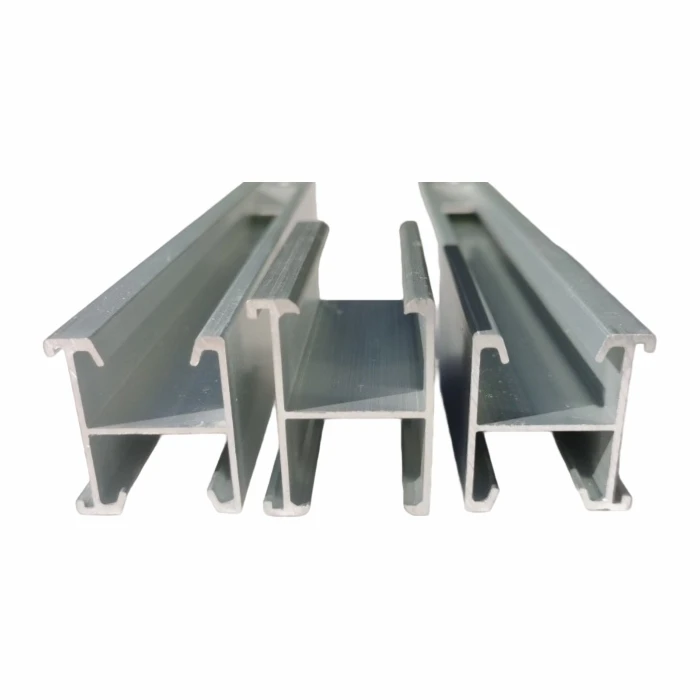

Aluminum Solar Rail supports photovoltaic modules and gives a slot for mid clamps, end clamps, T nuts, and splice kits. It is used in rooftop, carport, and ground PV mounting systems. The advantage is the weight-to-size balance: aluminum rail has enough section for 120-200 kg/m reference load and 1.5-2.4 m span in supplied data, while remaining easier to move than a steel rail of similar length.
Product Parameters
|
Parameter |
Specification |
|
Material |
6063-T5 or 6005-T5 aluminum alloy |
|
Section Size |
C14 ~40×14×1.5 mm; C18 ~40×18×1.8 mm; C20 41×20×2.0 mm; 26×53×1.7/2.5 mm |
|
Length |
1.2 m, 2.0 m, 3.0 m, 4-6 m custom |
|
Wall Thickness |
1.5, 1.8, 2.0, 2.5, 3.0 mm |
|
Slot Reference |
28×5 mm standard slot; 30×6 mm for larger module accessories |
|
Load Reference |
120-200 kg/m, span 1.5-2.4 m for aluminum rail data |
|
Surface Treatment |
Anodized, film thickness 8-15 μm |
Product Advantages
1) Aluminum Solar Rail has a formed rail slot for M8 bolts, T nuts, mid clamps, and end clamps, so module locking parts can be installed from the top.
2) The anodized layer protects the surface while keeping rail dimensions close to the designed slot size.
3) Different heights such as C14, C18, and C20 allow light roof systems and stronger ground systems to use different profiles.
Main Applications
Used in rooftop PV, ground PV, carport PV, and distributed solar mounting systems.
Suitable for PV module rows that need aluminum rails with clamp slots.
Packing and Transport
Rails are bundled by length and section size, with protective film or spacer material when surface appearance is required.
Splice kits, clamps, and T nuts can be packed separately with matching rail marks.
