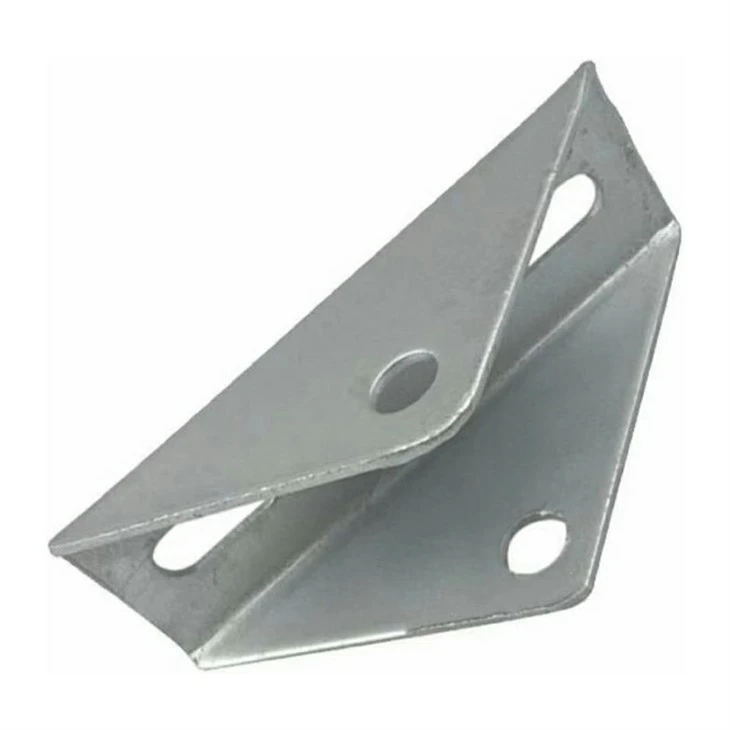

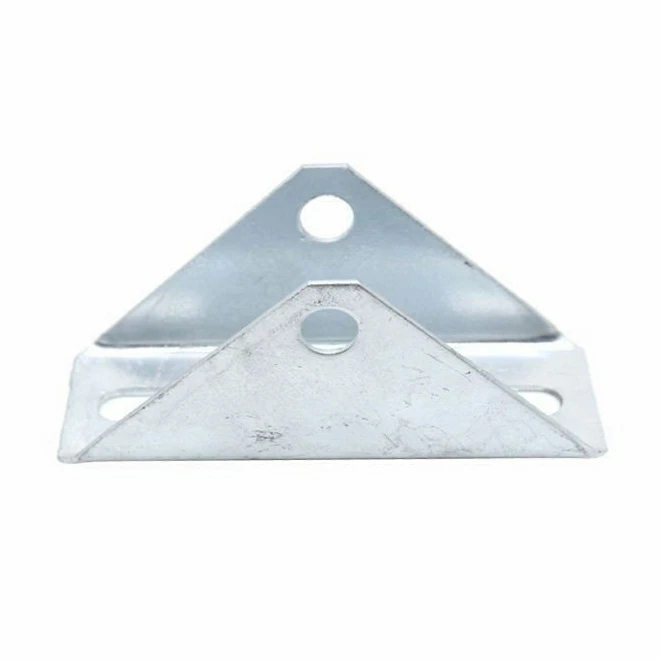

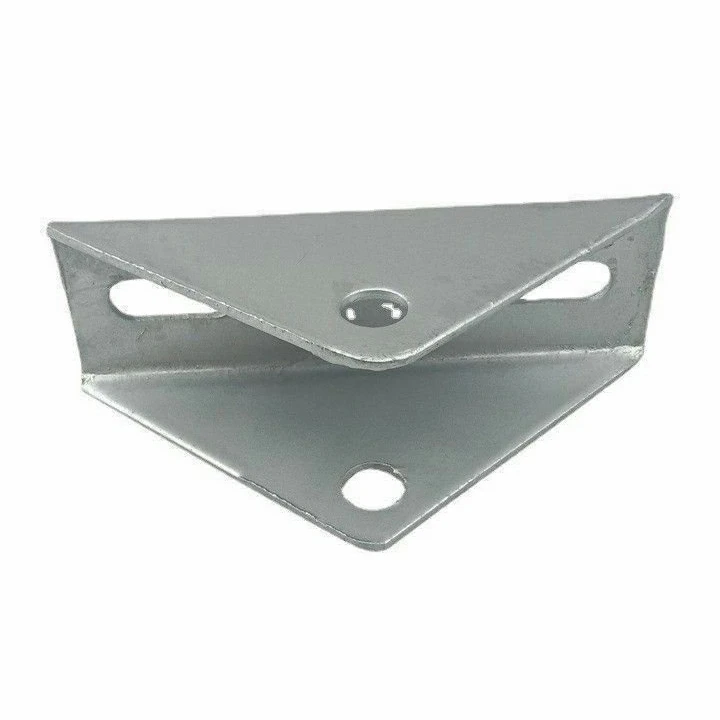

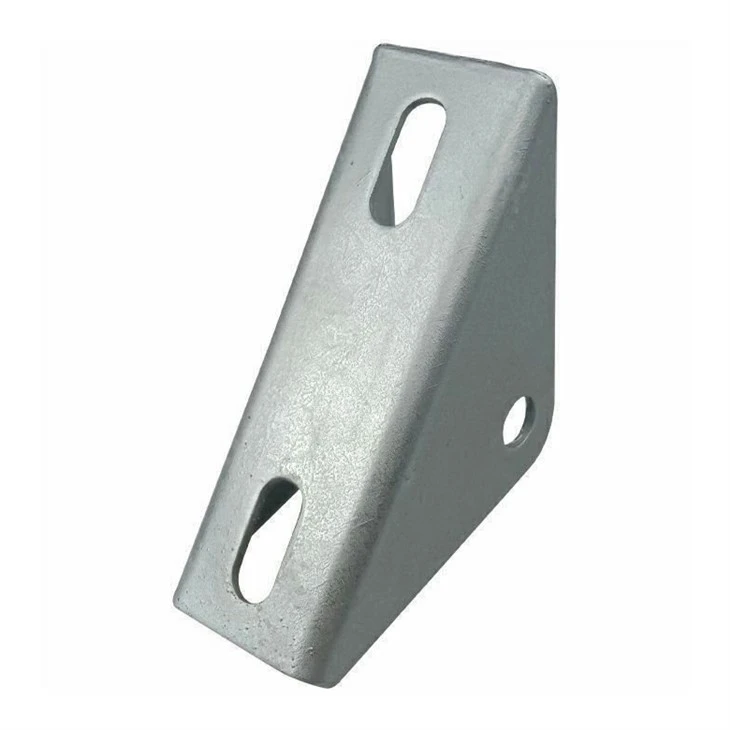

Solar Triangle Connector connects C channel columns, inclined beams, and support braces in photovoltaic mounting structures. Four-hole type with two slotted holes and two round holes is common, and two-hole type can be used for fixed-angle positions. The advantage is adjustable connection: 11 mm holes can fit M10 bolts, and 100 mm or 110 mm hole distance can give the bracket installer small angle and position adjustment.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B hot-dip galvanized steel; ZAM; 6005-T5 aluminum; 304/316 stainless by order |
|
Strength Data |
Q235B tensile strength reference ≥375 MPa from supplied data |
|
Thickness |
2.0, 2.5, 3.0, 4.0, 5.0 mm |
|
Height |
40, 50, 60, 80, 100 mm |
|
Hole Type |
Four-hole type: 2 slotted holes + 2 round holes; two-hole type by order |
|
Hole Diameter |
11 mm for M10 bolt match |
|
Hole Distance |
100 mm standard; 110 mm non-standard option |
|
Surface Treatment |
Hot-dip galvanized ≥65 μm, ZAM, anodized aluminum, or stainless |
Product Advantages
1) Solar Triangle Connector gives an adjustable triangle joint between column and inclined beam, which is useful during PV angle setting.
2) Four-hole structure spreads the bolt connection over a larger area than a single small bracket.
3) 2.5 mm is used for regular support, while 3.0 mm or thicker parts can be used for stronger wind areas.
Main Applications
Used in PV ground mounts, rooftop triangular supports, carport PV frames, and adjustable angle brackets.
Suitable for C channel and inclined beam connections using M10 bolt sets.
Quality Control
Hole diameter, hole spacing, plate thickness, bending angle, zinc layer, and burrs are checked before packing.
Slotted holes are checked with an M10 bolt to confirm movement range.
FAQ
