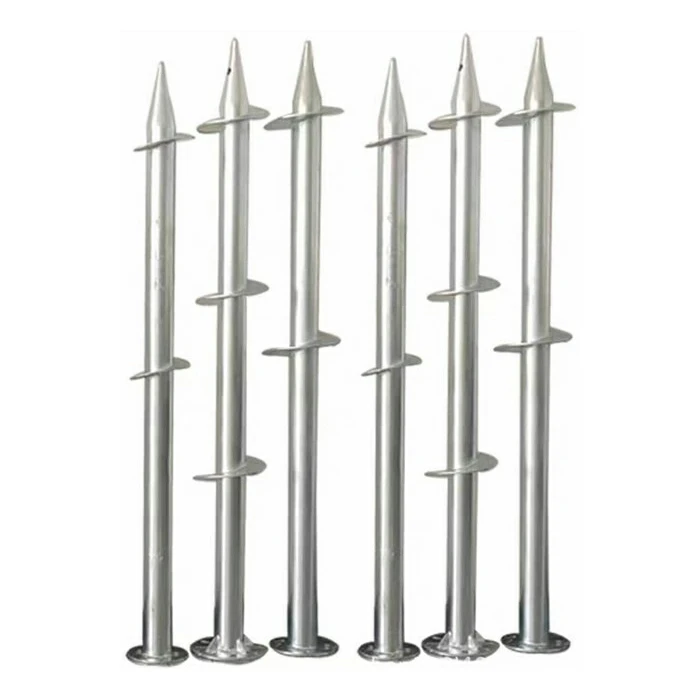

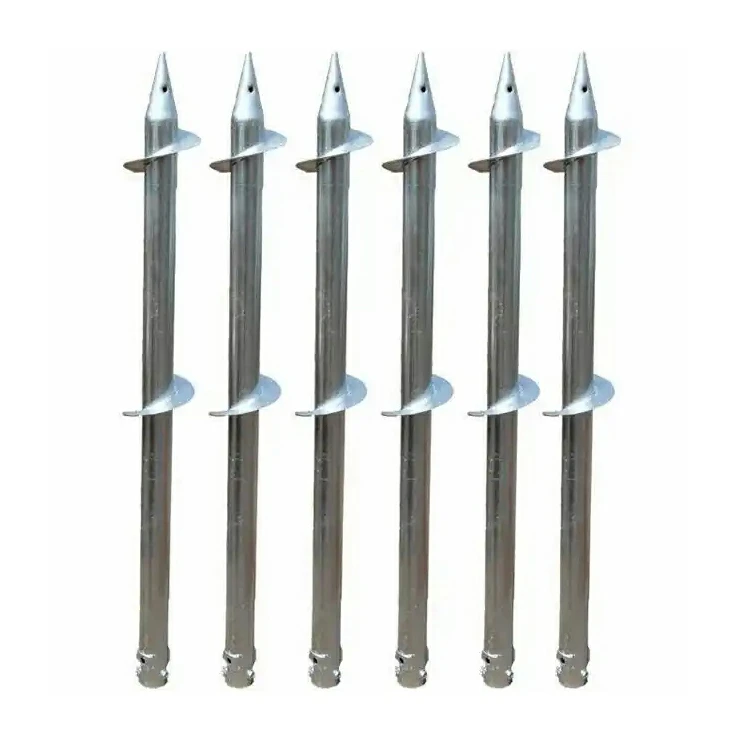

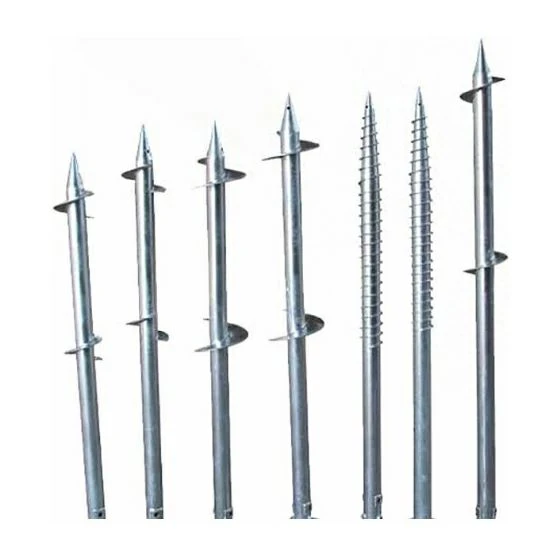

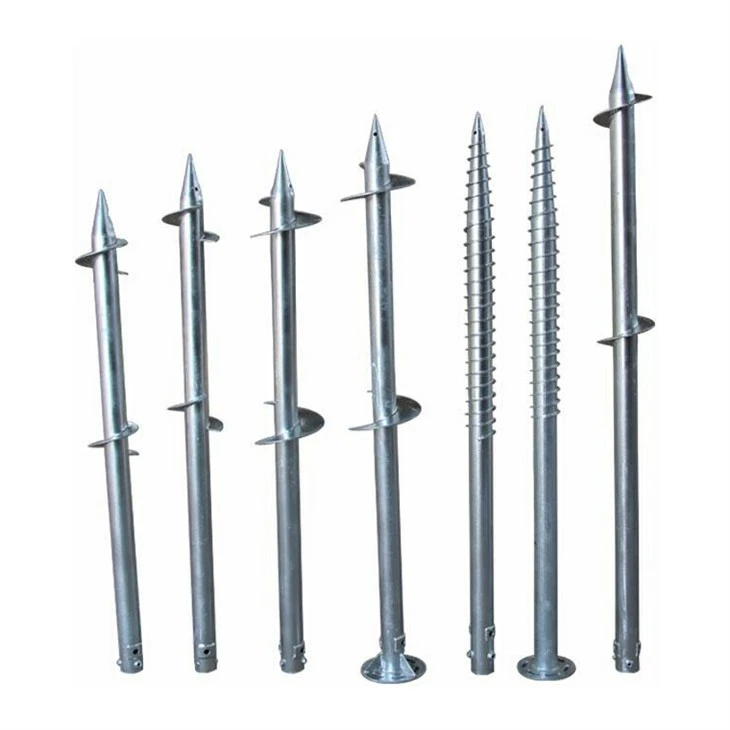

Galvanized screw piles are used as no-concrete foundations for ground photovoltaic supports, carports, fences, and light steel structures. The pile body has helical blades welded to the steel pipe, and the top can be a flange or open pipe connection. The advantage is quick foundation installation: pipe diameter, wall thickness, blade size, and top flange holes can be matched to soil and bracket load before driving the pile into the ground.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B or Q355B |
|
Strength Data |
Q235B yield ≥235 MPa; Q355B yield ≥355 MPa |
|
Pipe Diameter |
φ76, φ89, φ102, φ114, φ140, φ168, φ219 mm |
|
Wall Thickness |
3.0, 3.5, 4.0, 4.5, 5.0, 6.0 mm |
|
Length |
1.5 m, 2.0 m, 2.5 m, 3.0 m or custom |
|
Blade |
250-400 mm blade diameter, 4-6 mm blade thickness |
|
Surface Treatment |
Hot-dip galvanized ≥65 μm or ≥85 μm by project |
|
Top Connection |
Flange 150×150 or 200×200 mm with M16/M20 holes, or open pipe type |
Product Advantages
1) Galvanized screw piles remove concrete curing time, so the support structure can be installed after pile position and torque are checked.
2) Different pipe diameters carry different loads: φ76 suits small projects, while φ114 and larger sizes are used for ground stations and high wind areas.
3) Hot-dip galvanizing covers the pipe and blade surface for buried and exposed conditions.
Main Applications
Used for ground PV plants, farm PV, carports, fences, temporary buildings, and light steel foundation work.
Suitable for sites where concrete foundations are slow or difficult to build.
Installation Notes
Soil condition should be checked before selecting diameter, wall thickness, and blade size.
During installation, pile verticality and driving torque should be recorded when the project requires foundation acceptance data.
