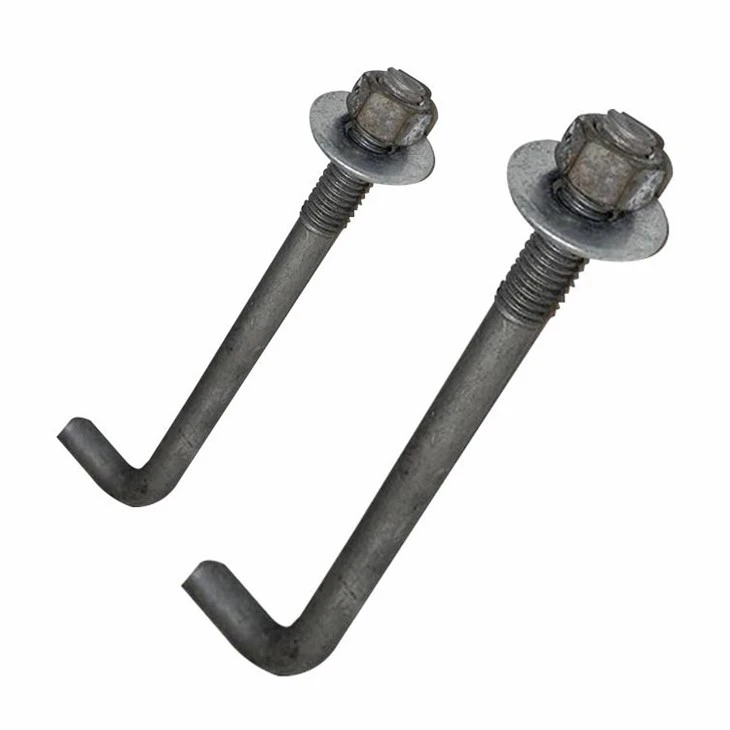

Gi foundation bolt is used to anchor equipment bases, steel columns, photovoltaic supports, bridges, and concrete foundations. The product can be made as L type, J type, T type, or straight rod with anchor plate. Its advantage is that diameter, grade, embedment length, thread length, and galvanized layer can be matched to the drawing before concrete work begins, so the anchor position is not changed after pouring.
Product Parameters
|
Parameter |
Specification |
|
Material |
Q235B, Q355B, 45# steel, 40Cr, 35CrMoA |
|
Strength Grade |
4.6, 5.6, 8.8, 10.9 |
|
Diameter |
M16, M20, M24, M30, M36, M42, M48 |
|
Length |
200-2000 mm by embedment depth and exposed thread |
|
Shape |
L type, J type, T type, straight rod with anchor plate |
|
Surface Treatment |
Hot-dip galvanized, zinc plated, black, or stainless by project |
|
Reference Standard |
GB/T 799 type anchor bolt structure by order |
Product Advantages
1) Gi foundation bolt can be supplied in different shapes, so the same order can cover column bases, machine bases, and support frames.
2) The strength grade is selected with material: Q235B for 4.6 grade, Q355B or 45# for higher grades, and alloy steel for 8.8 or 10.9 grade work.
3) Thread length and embedment length are separated in the drawing, which helps the exposed nut height remain stable after concrete pouring.
Main Applications
Used for steel structure columns, PV support foundations, machinery bases, bridge supports, and outdoor equipment foundations.
Suitable for pre-embedded anchor work before concrete pouring.
Quality Control
Thread gauge, total length, bending angle, anchor plate size, and galvanized surface are checked before packing.

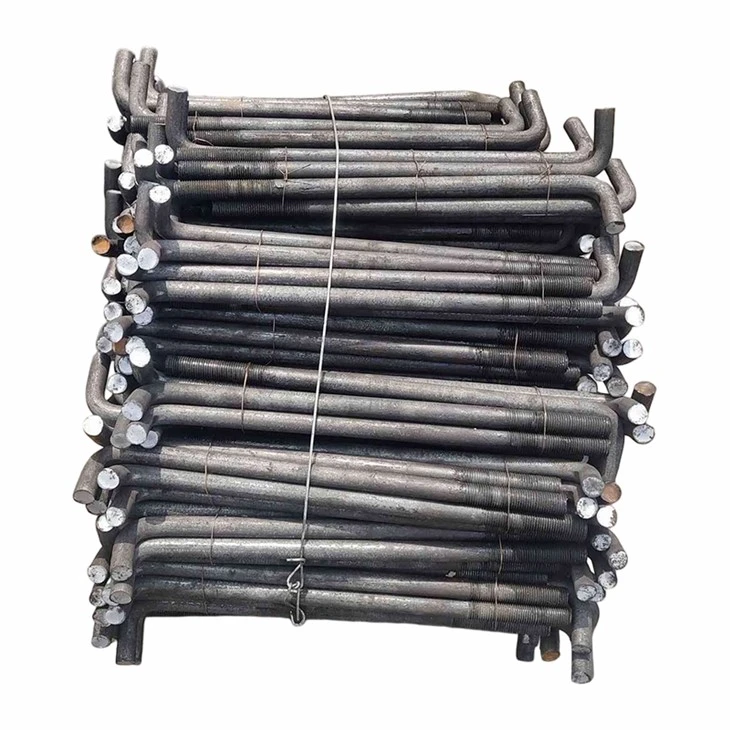

For mixed diameters, M16, M20, and M24 parts are bundled separately with size marks.
